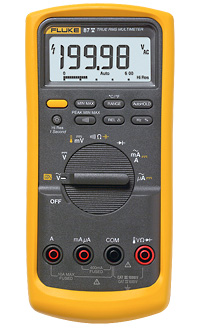

Pinpoint problems faster with the new 87V. Correctly measures the pulse width
modulated output produced by ASD's. Accurately measure true-rms ac voltage,
current (with optional i410 or i1010 current clamp accessories) and frequency at
the motor and at the drive terminals. Comes with Fluke's Lifetime
Warranty!
New Features of the 87V:
- Unique function for accurate voltage and frequency measurements on
adjustable speed motor drives and other electrically noisy equipment
- Built-in thermometer conveniently allows you to take temperature
readings without having to carry a separate instrument
- Optional magnetic hanger for easy set-up and viewing while freeing your
hands for other tasks
- Large digit display with bright, two-level backlight makes the 80-Series
V significantly easier to read than older models
Specifications:
- Lifetime warranty
- True-rms ac voltage and
current for accurate measurements on non linear signals
- Selectable filter for accurate voltage
and frequency measurements on motor drives
- 0.05 % dc accuracy
- 6000 counts, 3-3/4 digits
- 4-1/2 digit mode for precise measurements
(20,000 counts)
- Measure up to 1000 V ac and dc
- Measure up to 10 A, 20 A for up to 30
seconds
- Built in thermometer lets you carry one
less tool (TC probe included)
- Frequency to 200 kHz and % duty cycle
- Resistance, continuity and diode test
- 10,000 µF capacitance range for
components and motor caps
- Min/Max-Average recording with Min/Max
Alert to capture variations automatically
- Peak capture to record transients as fast
as 250 µs
- Relative mode to remove test lead
interference from low ohms measurements
- Auto and manual ranging for maximum
flexibility
- Touch Hold to capture stable readings
avoiding noisy signals
- Large display digits and two-level bright
white backlight for increased visibility
- Analog bar graph for fast changing or
unstable signals
- Input Alert provides audible warning
against wrong use of input jacks
- Improved selectable sleep mode for long
battery life
- Access door for fast battery changes
without breaking the calibration seal
- "Classic" design with new removable
holster with built in test lead and probe storage
Multimeter Includes:
- TL75 test leads
- AC72 Alligator Clips
- Holster
- 9V battery (installed)
- Getting Started Manual
- CD with detailed manual
- 80BK temperature probe
Click to view a virtual demonstration
