THIS ITEM IS CURRENTLY ON BACKORDER. PLEASE CALL FOR AVAILABILITY.
OVERVIEW:

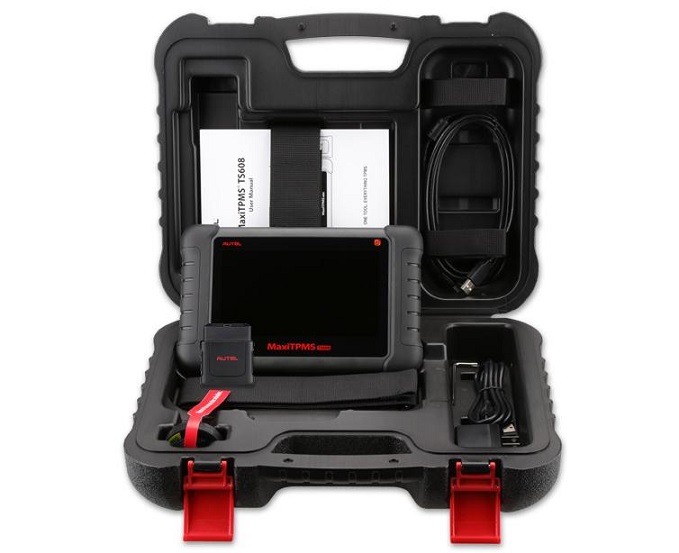

• The TS608K-1 Kit includes the TS608 TPMS tool and one bulk box of eight programmable Autel 1-Sensors
• The TS608 is a combination advanced service, all systems diagnostic, and complete TPMS tool
• The 7-inch touchscreen tablet comes equipped with an Android 4.4.2 operating system, a 1.6GHz quad-core processor, 32G hard drive, and the Autel MaxiSYS system suite software
• The TS608 features an enhanced TPMS status screen, can read/activate/relearn all known sensors, has 4 methods of MX-Sensor programming, performs placard value resets on supported vehicles, and displays on-tool MX-Sensor relearn procedures including OBDII relearn
• It offers essential diagnostics for all modules in all systems, AutoSCAN and AutoVIN (2006+), can do key fob signal tests, and currently has 20 service functions including ABS brake bleed
• The TS608 is updatable via WiFi and includes a wireless Bluetooth MaxiSYS-VCIMini. A 1-year tool warranty and 1 year of free software updates are available with purchase
• This tool is eligible for TCP expanded coverage
COMPLETE TPMS FUNCTIONS:
1. Activate all known TPMS sensors and read sensor status;
2. Diagnose ECU for complete TPMS health check with DTC description;
3. Read DTCs from ECU and erase DTCs;
4. Program MX-Sensors by copying original sensor IDs or creating new IDs randomly;
5. On-tool relearn procedure and wide OBD relearn coverage;
6. Toolkit, special TPMS functions;
ALL SYSTEMS DIAGNOSTICS:
1. Read/clear codes for all available electronic systems;
2. Turn off warning lights;
3. Display live data in text, graph & analog for easy data review;
4. Supports all 10 test modes of the latest J1979 OBD II test specs;
5. Enhanced OBDII Mode 6;
ADVANCED SERVICE FEATURES:
1. Relearn parking brake pad after replacement;
2. Reset Steering Angle Sensor (SAS);
3. Reset service mileage and service intervals;
4. Forced regeneration and adjusting injectors;
5. Support battery registration and reset;
6. Support IMMO functions;
SPECIFICATIONS:
- Recommended Use: Indoor
- Operating System: Android™ 4.4.2, KitKat
- Processor: Cortex-A9 processor (1.6 GHz)
- Memory: 1GB RAM DDR3 & 32GB ROM
- Display: 7-inch LCD capacitive touchscreen with 1024x600 resolution
- Connectivity: Mini USB 2.0, USB 2.0, Wi-Fi, HDMI Type A
- Micro SD: Card slot (supports up to 32GB)
- Sensors: Light sensor for brightness auto adjust
- Power and Battery: 3.7 V/5000 mAh lithium-polymer battery; Charges via 5 VDC power supply;
- Tested Battery Life: Around 7 hours of continuous use
- Battery Charging Input: 5 V/1.5 A
- Power Consumption: 600 mA (LCD on with default brightness, Wi-Fi on) @3.7 V
- Operating Temp.: -10 to 60°C(14 to 140°F)
- Storage Temp.: -20 to 70°C (-4 to 158°F)
- Operating Humidity: 5% - 95% non-condensing
- Dimensions: (W x H x D): 270.8 mm (10.0”) x 176.0 mm (6.9”) x 36.0 mm (1.4”)
- Net Weight: 885 g (2.31 lb.)
- Protocols: ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN), SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6
