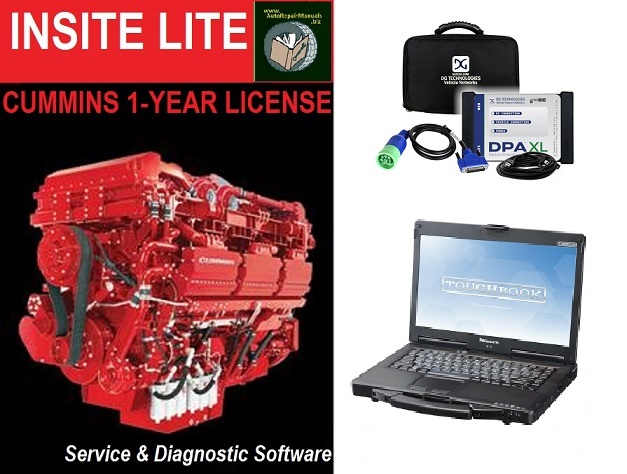

Cummins Insite Lite v9.1 Software DPA-XL Adapter & Panasonic CF-53 Laptop + Tech Support

1 Year of OEM Cummins Insite Lite software loaded & ready to go!

• Cummins Insite Lite works as a stand-alone diagnostic tool to support ALL Cummins Diesel Engines controlled by an ECU.
  • Works as a stand-alone diagnostic tool to support ALL Cummins Diesel Engines controlled by an ECU.  This is the same software used in Cummins dealerships.  The only functionality that is off-limits (password protected by Cummins) is max-horsepower adjustments and CPU reprogramming.
  • Capable of DPF regens, turbo calibrations, EGR calibrations, cylinder cut out tests, injector buss tests, new injector calibration, etc.
  • Capable of all parameter configurations including: Calibrations: Injector, EGR, Turbo; Cylinder Cut Out, Injector Disable, Buzz & Contribution, All Key-On & Key-Off Tests
  • No Internet Connection required to diagnose Cummins Engines.
  • Cummins Insite Lite software is registered with Cummins to your name and address for one year.
    • You will receive free updates for the first year.  The Cummins registration needs to be renewed every year at a cost of approximately $1014.50.  If you do not renew the Cummins registration, only the code reader functions will stay turned on.
  • Any other manufacturer specific OEM software (such as Detroit DDDL) can be installed at any time for an additional fee.
  • BONUS-INCLUDED: Factory Cummins engine repair information online manuals for up to 5 trucks.  All 5 trucks need to be registered at the time you create your Cummins Account.
    • Includes all Diagnostic Trouble Code (DTC) descriptions, factory diagnostic procedures and factory repair procedures specific to the vehicle you registered.
    • Includes factory wiring diagrams specific to the vehicle you registered.
    • Includes unlimited free factory Cummins telephone tech support for any problem you may have when diagnosing a Cummins engine.  This is a very valuable resource at your disposal, especially when you reach an impasse when diagnosing a Cummins engine.
• DG Diagnostics software can read generic & manufacturer codes on any system in the entire truck & industrial equipment- No Expiration. DG Diagnostics (DGD) is the software included with the DPA XL that displays faults, component information and basic vehicle parameters from the J1708/J1587 and CAN/J1939 data buses. DGD may reduce the need to purchase full-featured OEM software to use with DG’s adapters.
  • Read and display J1587 and J1939 faults in “text” form. Request clear of inactive J1587 and J1939 faults.
  • Display “total-vehicle” and “trip data” such as odometer, engine hours, and fuel economy from the J1587 and J1939 data buses.
  • Create a viewable/printable/saveable vehicle report in HTML format showing all information that has been captured.
  • Display common “dashboard” parameters such as RPM, temperatures and pressures from the J1587 and J1939 data buses.
  • Request reset of J1939 trip information (trip odometer, trip miles, trip fuel, etc).
  • Display J1587 and J1939 ECM component information such as VIN, Make, Model, Serial, and Unit Numbers.
  • Record data bus data for engineering analysis as well as play that data back internally through the program or externally to the data bus.
  • Configure and launch OEM applications directly without having to navigate through the Windows Start Menu.
• Software works on:
  • Heavy Trucks: International, Caterpillar, Cummins, Detroit Diesel, Mercedes, Freightliner, ZF, Mack, Meritor, Eaton, Bendix, Dana
  • Medium Duty Truck: UD, Hino, MB Sprinter, GMC, Ford (additional cables required)
  • Industrial, Construction, Agricultural & Military Equipment: CAT Off Road,  Komatsu, Volvo, Cummins, etc. (additional cables required)

• BONUS Diagnostic Software FREE-No Expiration:
  • Bendix ACom v6.5 - Bendix Antilock Brake Systems (ABS) Software
  • Haldex PLC ABS Trailer Software
  • Meritor TranSoft - Meritor FreedomLine & SureShift transmission software

** PLEASE NOTE: CUMMINS INSITE WILL NOT FUNCTION WITH WINDOWS 11 **

After November 2022 INSITE will no longer be supported on Windows 8.x OS or lower.
For INSITE to continue to work please upgrade to Windows 10.

What's Included:

• LAPTOP: Refurbished Panasonic CF-53 MK3 Toughbook Laptop (1Year Warranty on Parts & Labor)
  • Windows Operating System: Windows 10 64 Bit with Certificate Of Authenticity affixed to the bottom of the laptop case
  • CPU: Intel Core i5 2.70GHz
  • Memory:  4GB SDRAM (DDR2)
  • Storage: 500GB SATA Hard Drive mounted in shock proof hard drive caddy
  • Display:  14.0" widescreen 1280 x 800 WXGA LCD, Intel® GM45 (GMA 4500MHD video controller), External video support
  • Audio:  Intel high-definition audio compliant, Integrated stereo speakers, Convenient keyboard volume and mute controls
  • Keyboard:  87-key with dedicated Windows key, Electrostatic touchpad with scrolling support
  • MultiMedia: DVD Super MULTI Drive with Dual Layer Support
  • Expansion Slots: PC card type II x 1.  SD card (SDHC)  ExpressCard/54 x 1
  • Interface: Port replicator Dedicated 100-pin
  • External video D-sub 15-pin,  Headphones/speaker Mini-jack stereo, Microphone/line in Mini-jack stereo, Serial D-sub 9-pin, USB 2.0 (x 4) 4-pin, IEEE 1394a (FireWire) 4-pin, 10/100/1000 Ethernet RJ-45, 56K Modem RJ-11, Intel® Wireless WiFi Link 5100 802.11a/b/g/draft-n
  • Battery: Lithium ion battery pack (11.1V, typical 7800mAh, minimum 7500mAh)
  • AC Adapter: Included
  • Dimension and weight:  11.3"(L) x 14.0"(W) x 2.1"(H), 7.5 lbs.

• 31125 - Cummins Insite Light v9.1 Factory Heavy Truck Diagnostic Software Installed and registered to Cummins
• DPA-XL -
  • DG DIAGNOSTIC SOFTWARE: Includes OEM Unlimited Free telephone support for any connection issue you may have.
  • DG TECHNOLOGIES DPA-XL USB interface (The DLA+ 2.0 adapter connects between the PC and the vehicle)
  • 6 Pin & 9 Pin Deutsch Y-Cable connects to the truck
  • USB Cable for connection from your DPA-XL Adapter to your PC. Measures 15' in length.
  • Hard Plastic Case: Fits CD-ROMs, DPA-XL Adapter, and Cables
  • DPA-XL Includes 2 Year of Factory Service Support including ANY connection / adapter Issue
• BONUS DIAGNOSTIC SOFTWARE-INCLUDED:
  • Bendix ACom v6.5 - Bendix Antilock Brake Systems (ABS) Software
  • Haldex PLC ABS Trailer Software
  • Wabash ABS Trailer Software
  • Meritor TranSoft - Meritor FreedomLine & SureShift transmission software
• FACTORY CUMMINS TECH SUPPORT - Available on the telephone or through the Insite Chat window on the laptop.

Optional Software:  Cummins Repair Information Database

• Includes one year of unlimited access to Cummins diesel engine repair information database.   This option can be purchased with this equipment or separately on the website.
• 1 Year Online Subscription
• Part # 4021436
