Chysler 62TE, 62TEA Friction Module, Exedy - Transtar

DESCRIPTION & SPECS
Exedy provides in-house developed wet clutches for Automatic Transmissions (AT), Continuously Variable Transmissions (CVT), Dual Clutch Transmissions (DCT), Hybrid Electric Vehicles (HEV), Transfer Cases, and 4WD Couplings, etc. Choosing the friction materials that best meets the needs of our customers from the three types (paper, carbon, and non-woven fabric).

• Friction Module

NAME SPECS
Position Each
Material 1
Teeth 651099040073
OD (Inches) 1.75
OD (mm) 15.75
ID (Inches) 11
ID (mm) Inches
Surface 3.10
Surface Pattern Pounds

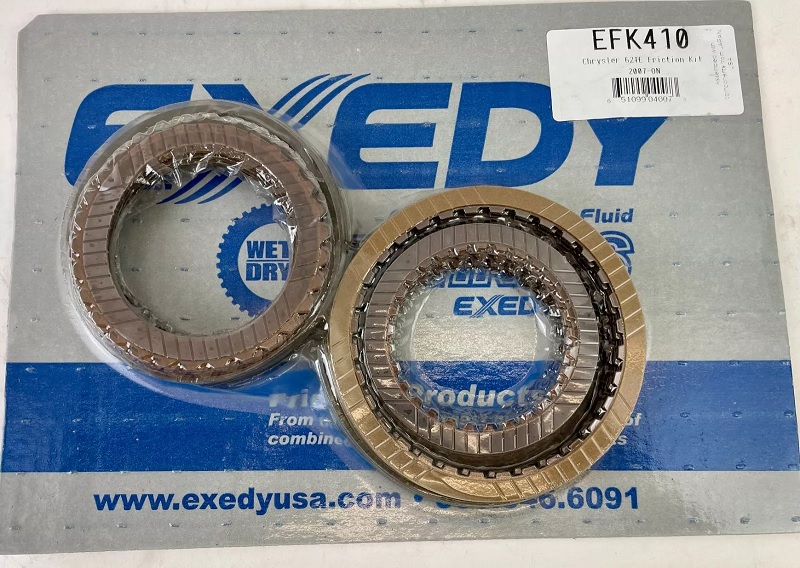

THIS KIT CONTAINS

• Friction; Underdrive, Direct, One Sided Internal Teeth, .060", 29 Teeth, 4.47" Outer Diameter, 3.39" Inner Diameter
• Friction; Underdrive, Direct, One Sided Internal Teeth, .060", 29 Teeth, 4.47" Outer Diameter, 3.39" Inner Diameter × 6 # J132116
• Friction; Underdrive, Low, .071", 31 Teeth, High Energy, 4.76" Outer Diameter, 3.54" Inner Diameter
• Friction; Underdrive, Low, .071", 31 Teeth, High Energy, 4.76" Outer Diameter, 3.54" Inner Diameter × 3
  # J132118
• Friction; Underdrive, Direct, One Sided, External Teeth, .060", 30 Teeth, 4.85" Outer Diameter, 3.62" Inner Diameter
• Friction; Underdrive, Direct, One Sided, External Teeth, .060", 30 Teeth, 4.85" Outer Diameter, 3.62" Inner Diameter × 6 # J132136

  TRANSMISSIONS
  NAME YEARS
  62TE 2007 - 2021
  62TEA 2009 - 2017

  VEHICLE FITMENT
  YEARS VEHICLE DRIVE TYPES
  2008 - 2016 Chrysler Town & Country FWD
  2007 - 2010 Chrysler Sebring FWD, AWD
  2007 - 2008 Chrysler Pacifica FWD, AWD
  2011 - 2014 Chrysler 200 FWD
  2009 - 2019 Dodge Journey FWD, AWD
  2008 - 2020 Dodge Grand Caravan FWD
  2008 - 2014 Dodge Avenger FWD, AWD
  2014 - 2021 Ram ProMaster 3500 FWD
  2014 - 2021 Ram ProMaster 2500 FWD
  2014 - 2021 Ram ProMaster 1500 FWD
  2012 - 2015 Ram C/V FWD
  2009 - 2014 Volkswagen Routan FWD
