$2,229.95 $2,149.95

AMR-BVA-34websites
Item Number: AMR-BVA-34
Weight: 26 lbs.
Manufacturer: Auto Meter Inc.
Warranty: 1 Year Repair or Replace (Factory Discretion)
FREE SHIPPING on all Orders in USA over $200.00.

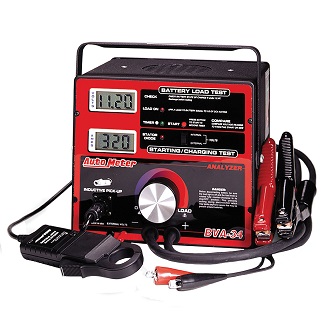

BVA-34 800 Amp Variable Load Battery/Electrical System Tester

Features:

  • The AMR-BVA-34 is a 6 and 12 Volt Battery Load Tester.
  • Dual precision accuracy and versatility. The heavy-duty battery tester has digital volt and Amp readings.
  • Automatically freezes voltage at the end of a 15-second test.
  • Includes external volt leads and inductive Amp Probe for versatile testing situations.
Specifications:
Carbon Pile: 800 Amp variable load at 12 volt
400 Amp variable load at 6 volt
Volt Display: Digital two-decimal 0-19.99 and changes to single-decimal from 20.0 to 199.9
Amp LCD Display: Digital 0-800 Amp
Amp Probe: 0 to 1700 Amps with 1 Amp resolu
Load Knob: Variable load with automatic load release
Safety: Red “LOAD ON” LED light
Timer: Start button with ON/OFF indicator light
Fan: 5 in.
Load Clamps: 800 Amp rating with vinyl coated red and black handles and insulated jaws
Load Leads: 9.5 ft. 2 gauge coax cable with internal 18 gauge conductor
Volt Selection: Internal/external volt selection switch
External Volt Lead: 10 ft. 16 gauge twin conductor
Dimensions: 10.5” x 9” x 11” metal case
Shipped Weight: 26 lbs.
