2011-2013 UD Truck PTT Premium Tech Tool Diagnostic Software Kit
UD Premium Tech Tool (PTT) Software
Official Licensed UD OEM software - a must have for UD Truck technicians. PTT is a toolbox that bundles diagnostic (VCADS) and repair applications (Guided Diagnostics) together making it a one stop shop for the technicians. The main purpose of PTT is to support the diagnostic & repair process and to make it easier for technicians to work with the tools provided. PTT provides access to vehicle and parameter programming, service information and diagnostics.
Features:
- UD Version 2.5.20 supporting 2011 to 2013 MY US10 (EPA10) Emissions only.
- This software will communicate with UD Trucks, with the proper interface device (adapter).
- Read / Interpret Fault Data
- Extensive Diagnostic Tools
- Facilitates Update Process
Important Information:
- This software can only be registered to users in the USA & Canada!
- Shipping Lead Time: Shipping lead time for this software is 2-5 business days. When the software is ready to ship, we will ship by whatever method you have specified.
- An e-mail address is required. When ordering, use the email address that you would like associated with your PTT account. After purchasing, you will receive an email containing your software password.
- Premium Tech Tool software comes with one year of free upgrades, from the date of purchase. After the first year, subscription renewal is $200.00 per year.
System Requirements:
NOTE: Installations and updates must be performed by a Windows user with Administrator profile. This is also required for using the Tech Tool application. CD & DVD-ROM repair manuals and diagnostic manuals are non-returnable.
The system requirements are as follows.
- 32 or 64 bit Processor - Intel Core Due 1.6 GHz equivalent AMD Athlon 64 X2
- Operating System for PTT
- Windows 7 Professional or Enterprise 32 or 64 bit
- Windows 8 & 8.1 Professional or Enterprise 32 or 64 bit
- Windows 10 Professional or Enterprise 32 or 64 bit
- System Memory (RAM) - 3.0 GB (more memory improves performance)
- Hard Drive - 20 GB Free Hard Disk Space
- Removable Storage - DVD-8X drive or faster
- Video Monitor - XGA (1024 x 768 pixels) or higher resolution monitor with 16 bit color
- Internet connection using 10 Mbps or higher speed network adapter and/or WLAN and/or 33.6Kbps or higher speed modem (not support for Win 7/8 clients)
- Keyboard and mouse or compatible pointing device

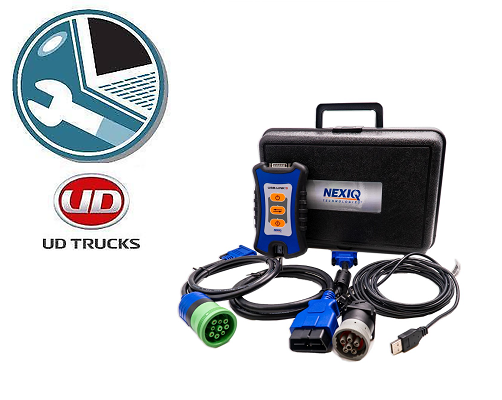

USB-Link 3 Interface Kit with 9-PIN & OBD-II Adapter Cables
*** PLEASE NOTE: NEXIQ HAS REMOVED THE 6-PIN ADAPTER FROM THEIR KIT ***
The USB-Link 3 is designed to work with all your OEM heavy-duty applications for both your diagnostic and reprogramming needs. So stop looking for an adapter that is application specific because the USB-Link works with all of them, and you have a choice of connections wired or wireless up to 100 ft.
Includes:
USB Link 3 P/N 124032
15 ft. USB cable
Quick Start reference Guide
9-PIN & OBD-II Cable
Drivers are downloaded from Nexiq website
Optional: (Not Included)
Bluetooth dongle antenna for your PC or Laptop-PN 405001 (allows wireless operation to 100 Feet)
API Support: RP1210A/B, J2534-2
Protocol Coverage:
3 CAN - J1939/CAN125/CAN250/CAN500/CAN1000
Automatic bit rate detection for all standard CAN channels
Single Wire CAN
Fault Tolerant CAN
J1587/J1708
J1850
ISO 15765 (Diagnostic CAN)
ISO 14230 (KWP2000 over ISO9141)
J2534
ALDL
ATEC 160 (160 baud)
Features:
RP1210A, RP1210B, RP1210C and J2534 API support
Easy USB connectivity using Laptop USB Port
Wireless connectivity thru Bluetooth
Supports Windows® 7 , Windows® 8, and Windows® 10 (all three in both 32 & 64 bit versions)
Made for iPhone, iPad
DVD-ROM & CD-ROM service manuals are not returnable.
