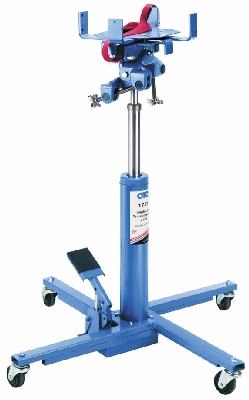

Universal mounting head provides wide fore and aft tilt range, making alignment of transmission easier. Additional reach and spread are also provided. Foot pump and pedal release mechanism give precise ease of control when positioning or removing a transmission. Adjustable nylon tie-down strap safely secures load. Two-stage hydraulic cylinder design speeds lifting of transmission into position for installing. Very stable work platform has four swivel casters, enabling jack to be easily maneuvered under the vehicle.
Made in U.S.A.
OTC's unique Lifetime Marathon Warranty. á
| Specifications: |
| Max. Load Lifting Cap. Lbs.: | 1,000 to 73-1/2 First Stage |
| Minimum Height: | 36 |
| Maximum Height: | 73-1/2 |
| Maximum Forward Tilt: | 500 |
| Maximum Backward Tilt: | 380 |
| Maximum Side Tilt: | 140 (Left or Right) |
| Leg Width: | 40 |
| Weight: | 164 lbs. |
