Nemisys is an automotive scan tool designed and powered by Determinator technology. Nemisys covers early OBD I systems and all OBD II protocols, including the Controller Area Network (CAN) protocol. CAN protocol was introduced in 2003 model year vehicles and is the mandated protocol in all new vehicles by 2008. This is a brand new unit with a 1 year warranty from OTC.

New Powerful Features:

Nemisys now includes Body and Chassis systems along with
Engine, Transmission, ABS, and Airbag.
TPMS system coverage for many systems.
Repair Information – Typical Sensor/Data Specs.
CAN Enabled—no adapters to buy.
Data Graphing.
Record/ Playback.
Vehicle Protocols: CAN, J1850 VPM, J1850 PWM, ISO 9141, Keyword
2000, UART, SCP, SCI, CCD, and more
Enhanced OBD II Mode 6 screens.

Coverage:

USA Domestic: Ford, GM, Chrysler OBD I & OBD II coverage (1984 thru 2008).
USA Domestic: Ford, GM, Chrysler Enhanced Data & DTCs.
Global OBD II Asian & European coverage (1996 thru 2008).
Optional USA Asian OBD I & OBD II coverage (1983 thru 2008) now
with Hyundai and Kia.
Optional Asian Enhanced Data & DTCs.

Improved ScanMate PC Software

Upload recordings, play back recordings, print reports, export captured data in
spreadsheet format, get Internet updates, email and share data recordings, view
data in line graph, bar graph, meter, digital, or superimposed format.

Nemisys Vehicle Coverage

Included:

GM ’84–2008
Ford ’84–2008
Chrysler ’88–2008
Jeep ’91–2008
Saturn ’91–2008
USA European ’96–2008
(Global OBD II).
USA Asian ’96–2008
(Global OBD II).

Optional (Not Included with Kit):

Honda ’85–2008
Toyota ’88–2008
Nissan ’87–2008
Mitsubishi ’88–2008
Mazda ’83–2008
Hyundai ’89–2008
Kia ’95–2008
Isuzu ’84–2008
And more Asian Systems

Features:

Gasoline and diesel engine coverage.
Vehicle data communication and power LED indicators.
Demo mode permits operation without vehicle connection.
Supports multiple trouble code requests, generic codes (mode 3), pending
codes (mode 7), enhanced codes, and GM DTC status.
On-screen definitions of diagnostic trouble codes.
Loaded with the following language options: English, Spanish, French, Italian & Dutch
Trilingual Quick Start Guide included to help technicians get started fixing
cars FAST.
CD-based manuals in Spanish, French, and English.
Customize data views in line graph, LED, or digital format with the push of
a button.
All 9 modes of OBD II supported.
Automatic recording of data.
3 record modes – marker frame, freeze data history, & code triggered record.
Four software-definable function keys.
Includes six AA batteries for uninterrupted power supply and off-vehicle use.
Internet upgradeable.

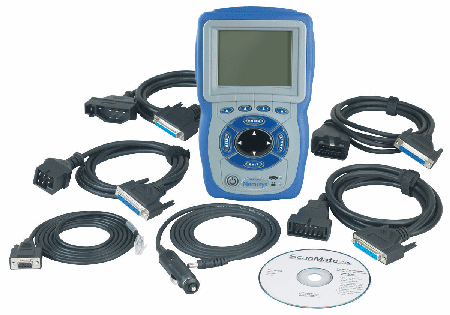

Kit Includes:

Nemisys scan tool loaded with 2008 Domestic software
OBD II cable
Ford, GM, & Chrysler OBD I cables
ScanMate Lite PC software
RJ45 serial to PC cable
12-volt power cable
Quick Start Guide included with CD-based manuals in Spanish, French, English
Professional carrying case
