Direct Technician Feedback…

Continues to drive the evolution in Genisys diagnostics, Genisys EVO™. As an example, technicians asked for video out for projection to a PC monitor, USB communications for use with a diagnostic workstation, asynchronous DataStream with 4 line graphs per screen to better view and analyze data in real time. Genisys EVO packages these productivity enhancements in a new aggressive design.

NEW! Genisys EVO Features:

Four Graphs Per Screen
Faster Asynchronous Data Refresh
More Aggressive Over-Mold
Fresh Styling
On/Off Button
Language Options: English, Spanish, French, Dutch & Italian

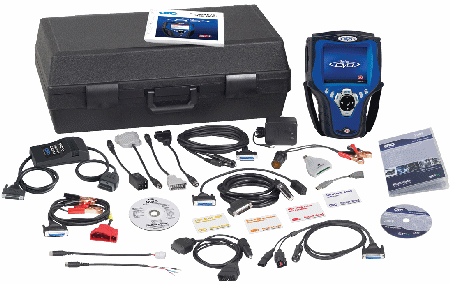

Your Genisys EVO Kit Includes:

Genisys EVO™ System 3.0 featuring Code-Assist™ with OBD II Smart Cable
Automated System Test™
USA 2008 Domestic Software with Pathfinder, Repair-Trac™ and Fast fixes™ Loaded
USA 2008 Asian Software Loaded
USA 2008 ABS/Air Bag software and vehicle-specific cables Loaded
InfoTech Software
Manuals and adapters
Domestic OBD I vehicle cables (for GM, Ford, Chrysler, Jeep, Saturn)
Carrying Case

Genisys EVO™ featuring Code-Assist™
“Code-Assist™ provides over a million experienced-based Confirmed Fixes™ for vehicle specific, individual OBD-II Diagnostic Trouble Codes (DTC’s). Code-Assist was developed using over 3.5 Million hotline calls to the Identifix® Repair Hotline™ and the 5 Million + Direct-Hit™ uses by Identifix customers each year. Unlike the traditional list of theoretical potential causes provided by service manuals, Code-Assist supplies validated fixes for the B, C, P and U codes actually being set on vehicles and then ranks them by frequency, designating them as Top Reported Fixes, Frequently Reported Fixes and Also Reported Fixes.

Genisys System 3.0

System 3.0 is a new software application and a high-speed compact flash card containing Power Features that will improve the performance of all Genisys scan tools.

POWER FEATURES:

Fast Boot™ (Patent Pending)
- Approximately 8 seconds for the new Genisys
- Approximately 15 seconds for the Genisys Classic (3454 and earlier)
Quick DTC Scan™ — automatically scans for enhanced and OBD II system DTCs in seconds
Automated System Test™ — an extensive Health Check of enhanced vehicle controllers
Link from Mode 6 Items to Repair Info.
Link from Readiness Monitors to Drive Cycle Test Info.
Onboard Accessory/Cable List
Glossary of Terms
Enhanced Report Printing Options

OBD II Smart Cable

Has the combined power of more than 50 System Smart Inserts.

Eliminates the need for many current and future System Smart Inserts.
Provides improved test capability and accuracy.

Bottom Line Benefits

Improved technician satisfaction
Faster diagnosis
More convenient
Higher technician productivity

Automated System Test

Automated System Test™ is one button press to perform a Comprehensive Heath Test and report the data in a fraction of the time it used to take using
manual, step-by-step procedures.

A System Analysis Test Report summarizes the findings in a new menu selectable format. This new format permits fast access to just the data you need, such as, DTC’s (generic and enhanced), Freeze Frame, Mode 6 Component Test, Mode 5 Oxygen Sensor Tests, Mode 1 Readiness Tests, and more!

For additional time savings available repair information is a button press away. Pressing Enter on critical high frequency failure DTC’s provides the technician with any available repair information for that specific vehicle.

Quick DTC Scan
Quick DTC Scan is one button press to perform a trouble code check of all supported vehicle systems in seconds. For the technicians that want a fast validation that all systems are clear of DTC’s before or following a repair this is the test. Now you can test for generic and enhanced DTC’s in seconds!
USA 2008 Domestic Software
New! Vehicle coverage for GM, Ford, Chrysler, Jeep, and Saturn 2008 models including improved system coverage for earlier years. This OBD II Smart Cable compatible software also includes the NEW Code-Assist™ by Identifix™, Pathfinder troubleshooting with the NEW Code-Assist™, Repair-Trac™, Fast fixes™, Automated System Test™, Quick DTC Scan, Smart Card, manual, ConnecTech Reader, and the NGIS Windows-based program CD for downloading software updates.

Pathfinder Troubleshooting Information Pathfinder troubleshooting information from 1992 to 2008 provides critical information at the technician’s fingertips. In addition to the Repair-Trac™ and Fast Fixes™ databases Repair information includes: • Code information • Symptoms • Specifications• Data/sensor information • TSB references• PCM connector information • Component location Repair-Trac™ Tech Tips As the vehicle fleet ages more pattern-failure tech tips are available. Many Domestic, Asian, and European older vehicle tips added. Repair-Trac is the largest database of known vehicle-specific fixes available to the automotive aftermarket. Only the NGIS scan tool has the diagnostic power and the largest repair database to help you work smarter. Check it out: • Coverage from 1969 through 2008 for USA domestic, USA Asian, and USA European vehicles. • Aftermarket TSB’s based on information from over 2 million tech service calls. • Access Repair-Trac from the Main Menu, Data Stream, or Trouble Code menus. Fast Fixes™ Repair Information Database Fast Fixes is a “sister” information database to Repair-Trac. No pattern failure listed for the vehicle’s symptom? No problem. Fast Fixes data provides a vehicle specific checklist of the most likely and most overlooked causes. Systems covered: Engine performance • Brakes • Starting • Steering • Charging • Suspension • HVAC
USA 2008 Asian Software
NEW! Vehicle coverage for Toyota, Honda, Nissan, Mazda, Mitsubishi and more 2008 models including improved system coverage for earlier years. This OBD II Smart Cable compatible update kit also includes the NEW Code-Assist experience-based data that links to Asian 2008 when Domestic 2008 is installed. Asian 2008 includes the new Automated System Test™ and Quick DTC Scan feature. Kit includes the NGIS software CD, manual, and Smart Card.
TPMS bidirectional tests have been added for Toyota, Honda, Mitsubishi and more. Including the ability to enter the TPMS sensor I.D and sensor initiation. EVAP bidirectional tests have been added for Toyota, Honda, Nissan, Mazda, Hyundai and Kia. Approximately 500 vehicles, 4000 systems and over 500 bidirectional tests are added for 2008 and earlier vehicles. Asian Pathfinder Troubleshooter to include Data / Sensor Information for Toyota, Lexus, Scion, Nissan, Infinity, Honda, Acura, Mazda, Mitsubishi & more! Enhanced Hyundai coverage 1989 – 2008 and Kia 1994 – 2008. Honda licensed OEM data coverage includes engine, transmission, ABS, air bag, tire pressure monitor, and more body and chassis systems. Expanded enhanced Toyota to 2008 including OBD I, 1995 and older coverage.

USA ABS/Airbag 2008 Software and Cables

Expanded coverage for USA Domestic, USA Asian and USA European
through 2008 model year.
New TPMS Quick Reference Information provides system specific test
procedures.
This is the kit you need if you are a Genisys™ owner wanting to add data
stream, bi-directional testing, fault codes and Pathfinder ABS troubleshooting, and ABS-specific cables.

InfoTech 2006 Software
InfoTech 2006 software provides the key information to take a vehicle-specific symptom or fault code to a fast and accurate repair.
Features and Benefits:
Domestic, Asian, & European vehicle coverage for vehicles on the road Engine, transmission, and ABS systems covered. Asian and European coverage added for component wiring, circuit descriptions, component and control module locations. Vehicle System Test (multiple charging, fuel, and ignition tests) Engine Specifications Functional Tests Circuit Description Component Locations Wiring Diagrams Connector Information Component Specifications Reference Waveforms Oil Light Reset Procedures Current Ramping Tests Transducer Tests
