$1,861.00 $1,649.95

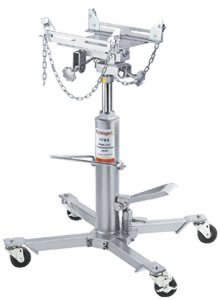

OTC 1000 Lb. Capacity Hydraulic Under Hoist Transmission Jack
Item Number: OTC-TJH10
Weight: 165.3 lbs.
Manufacturer: OTC
FREE SHIPPING on all Orders in USA over $200.00.


We are Authorized Dealers of all OTC Tools
(Best Brands Software, LLC, the parent company, is the account holder.)

1000 Lb. Capacity Hydraulic Under Hoist Transmission Jack



  • A high-lift transmission jack with universal saddle and adjustable corner brackets and safety chains for optimum positioning of the load.
  • The head tilts front to back and side to side to make removal and installation of transmission and driveline components easier.
  • Big, easy-to-grip knobs make mounting head adjustments simple, and the included safety chains securely hold components during removal, transport and installation.
  • Ideal size and capacity for the removal and installation of automobile transmissions.
  • Meets all ASME PASE-2019 safety standards.
  • Hydraulic system features flash-chromed rams to prevent rust from entering the system, prolonging jack life.
  • A foot-operated pump and lowering pedal allow for ease of control when positioning or removing a transmission.
  • Specially designed with a wide leg base and 4" polyurethane swivel wheels for stability and easy maneuvering.
  • A built-in safety overload system prevents the jack from being used beyond its rated capacity and two locking casters help keep the jack in position during use.
  • Capacity: 1,000 lbs
  • Min height, retracted: 35"
  • Max height: 71-5/8"
  • Forward tilt (max): 24°
  • Backward tilt (max): 19°
  • Side tilt (Max, side/side): 20°
  • Leg width: 37-1/8"
  • Wheel size: 4"
  • Compatible with the following OTC transmission adapters, and more: 1870 Universal transmission adapter; 1758 Fuel tank handler; 1797 Heavy-duty clutch adapter
