Mack Wiring Diagram
Chassis Series MR 2000-Older

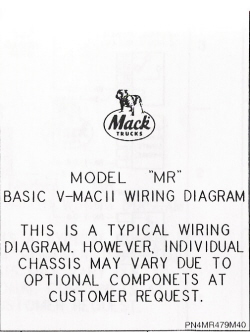

This wiring diagram is printed front to back folds out to 21in by 16in. Useful for anyone who works on or services Mack Trucks.
Contents:
- Sheet 1 - Power Distribution
- Sheet 2 - Lighting Circuits
- Sheet 3 - Basic Circuits A
- Sheet 4 - Basic Circuits B
- Sheet 5 - V-Mac III Circuits
- Sheet 6 - ABS Circuits
- Sheet 7 - Allison HD Circuits
- Sheet 8 - Ground Circuits
- Sheet 9 - Connector Legends
