Engine Management Wiring Diagrams
- Engine Controls
- Power Distribution
- Ground Distribution

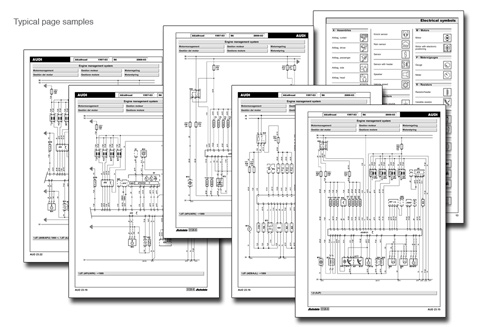

The AutoData Import Engine Management System wiring diagrams on this
DVD are sourced from OEM information. Diagrams pertain only to wiring
originating from the Engine Control Module (ECM) going to various sensors/parts of the
engine & transmission. Each wiring
diagram is illustrated in an easy-to-use common format. Autodata's
user friendly Model Identification Table makes it a snap to find the correct
wiring diagram for each vehicle. The program allows you to magnify the
diagrams and zoom in on a certain portion.
Vehicle Coverage:
Import vehicles from 1994 - 2005 including all models of:
- Acura
- Audi
- BMW
- Honda
- Hyundai
- Infiniti
- Isuzu
- Jaguar
- Kia
- Land Rover
- Lexus
|
- Mazda
- Mercedes-Benz
- MINI
- Mitsubishi
- Nissan
- Saab
- Scion
- Subaru
- Suzuki
- Toyota
- Volvo
|
System Requirements (minimum)
Windows 98, ME NT 4.0, 2000 or XP
Microsoft Internet Explorer 5.5
233MHz processor (633 MHz or higher recommended)
64Mb of Ram (256 Mb or higher recommended)
Display set to 16 bit color or higher
A screen resolution of 800x600 or higher (1024 x 768 is recommended)
DVD may only be accessed from one PC & requires registration with Autodata
before it can be used.
(serial number & registration instructions are included with disc)
Ground Shipping: $7.35
