InfoTech Software | | InfoTech 2006 software provides the key information to take a vehicle-specific symptom or fault code to a fast and accurate repair. | - Domestic, Asian, and European vehicle coverage
- Engine, transmission, and ABS systems covered
| | Vehicle Specific Component Tests and Information - For each vehicle specific component, the following information is available: | - Functional Tests - walks user through complete test procedure.
- Circuit Description - gives user description about how the circuit functions.
- Component Locations - provides on-vehicle location of sensor.
- Circuit Diagrams - shows component wiring diagrams including wiring colors.
- Connector Diagram - displays connector pinout to provide correct hookup.
- Component Specifications - lists the correct sensor operating values for specific operating conditions.
- Reference Waveforms - displays exactly what the user should, and should not, see when connected to circuit.
| | Vehicle System Tests - Complete test procedure & circuit connection diagrams are provided for key driveability system: | - EGR system tests.
- Canister purge system.
- Fuel control including injectors, M/C solenoid, and O2 sensor.
- Fuel delivery including fuel pressure & volume, pressure regulator, fuel pump voltage, and current.
- Charging system including alternator voltage, current, and diode.
- Starter cranking tests and voltage drop.
- Ignition system including coil, module, wires, and plugs.
- OBD system including idle controls, out-of-range, and no-signal tests.
- No-start including ignition, fuel, and compression.
- Transmission pressure, solenoid, and TCC tests.
- Back pressure.
|
Additional InfoTech Features | - Repair Trac - known fixes and fast repairs for today's high-tech vehicles.
- Domestic Transmission Pan ID - transmission pan identification graphics.
- Torque Specs - cylinder head and intake manifold torque sequence pictures, including torque and torque angle specifications.
- Tune-up Specification - includes fuel and ignition systems specifications.
- Oil Light Reset Procedures - includes the manual reset procedures for oil
service lights. - Indexed Information - helpful information including definitions and how-to procedures for scope and automotive terminology.

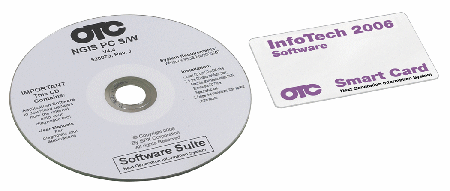

|  | | Kit Includes: | - InfoTech 2006 Smart Card
- Manual
- The NGIS Windows-based program CD for downloading software updates
|
|
